801s : 진동센서















GENERAL SPECIFICATIONS
Size: 41 * 15 * 12.5mm

The main chip: LM393, vibrating probe

Operating Voltage: DC 3-5V

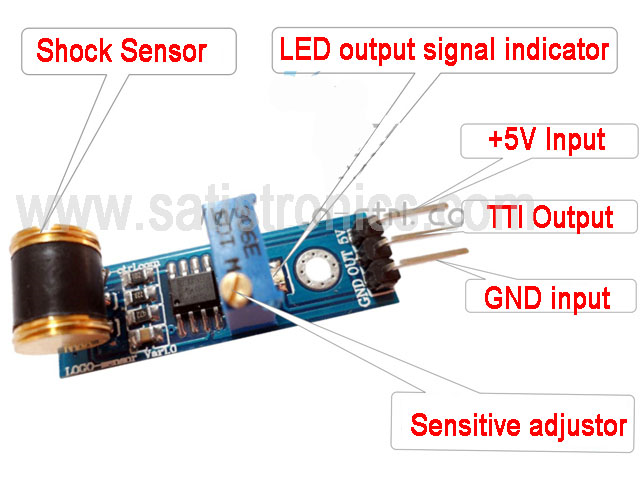

Main features:

1, having a signal output instruction;
2, with a TTL level signal, and the analog output signal;
3, the output valid signal is high, the light goes out;
4, the sensitivity is adjustable (fine-tuning);
5, wide detection range of vibration, no direction;
6, with mounting holes, firmware installation flexible and convenient.
Applications: can be used in anti-theft devices, electronic locks, mechanical equipment vibration detection, detection range bull's-eye counts vibration testing occasions;





CIRCUIT:SPST
CURRENT RATING:12mA
VOLTAGE RATING:24VDC
CONTACT RESISTANCE:50mΩ Max.(inital)
INSULATION RESISTANCE:100MΩ Min
OPERATING FORCE:170gf±50g
TOTAL TRAVEL:2.8mm±0.4mm a , long : measurement 10mm x wide 30mm x high 20mm
2 , main chip : lm393 , vibration probe
 three , working voltage : dc 3-5v
 four , features :
1 , possesses the signal output indication
2 , with analogue and ttl level signal output signal output
3 , output signal for high effective dbm0 , indicator lamp quellers .
4 , sensitivity adjustable ( adjusting ) .
5 , vibration wide range detection , directionality none .
6 , belt mounting hole , firmware flexible and convenient installation .
OPERATING LIFE:50,000 CYCLES Min
SOLDER SPECIFICATIONS:256°C for 3 seconds
FUNCTION:Momentary
OPERATING TEMPERATURE:+10°C ~ +60°C










801s 진동센서 001 specification.pdf
